首頁 > 產品中心 > 3D線材成型機
產品詳細

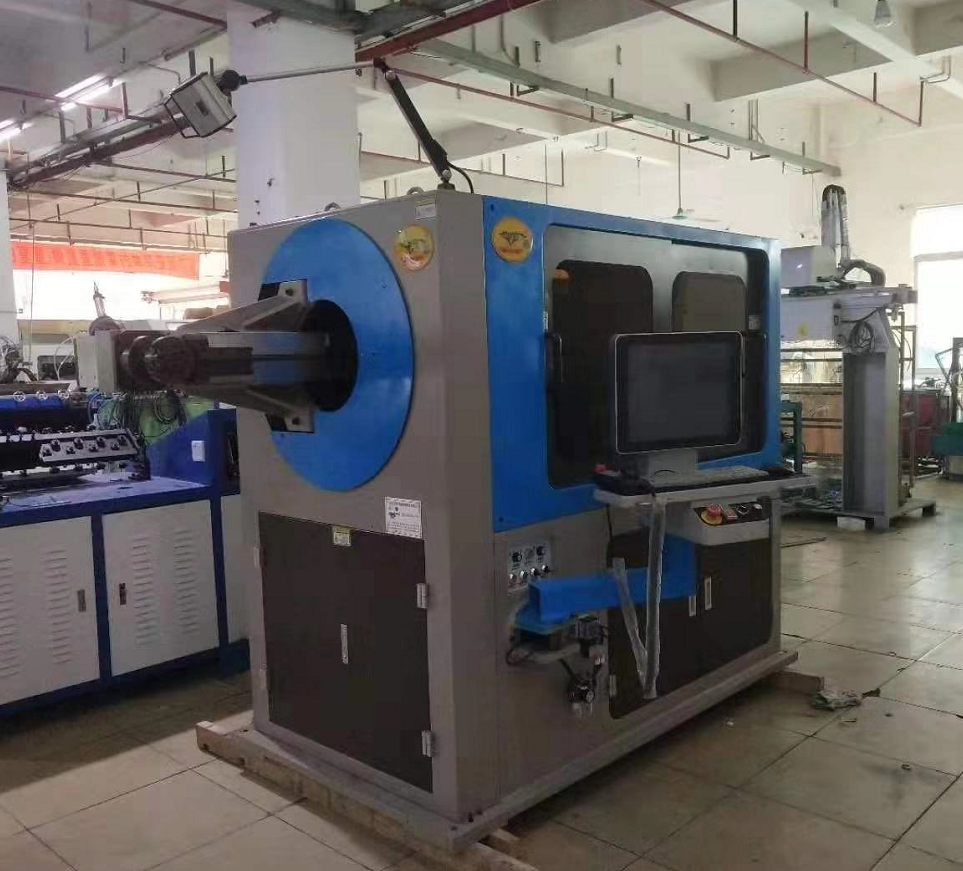

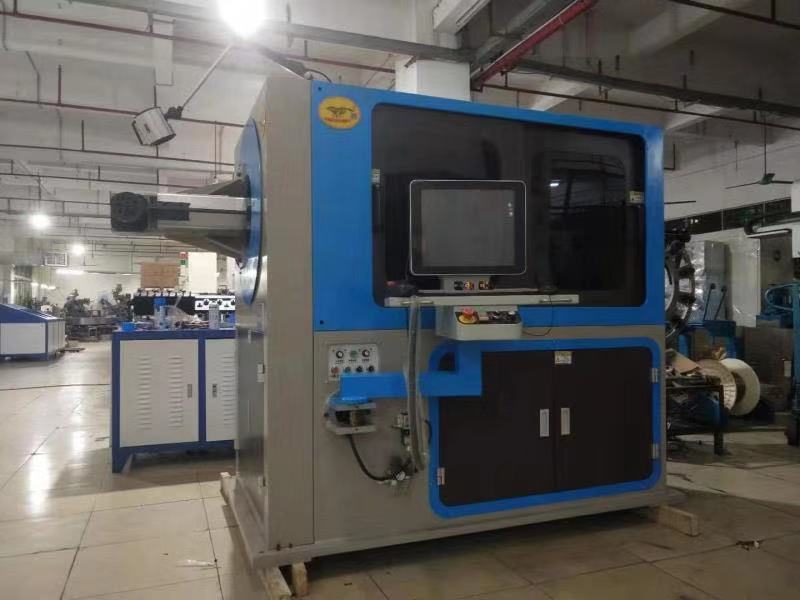

名稱： 楓盛轉頭式3D線材成型機FS-DG203-08-5120
Fengsheng 3D wire forming
machine with bending turret FS-DG203-08-5120
品牌brand： 莞狼/楓盛（FS）
轉頭機的特點是適合做大線經、桿件類金屬線材的產品
This type with bending turret is designed for making thick wire, rod shaped metal wire products,etc.
簡述：生產線經4-12mm。Brief description: Available processing diameter：4-12mm.

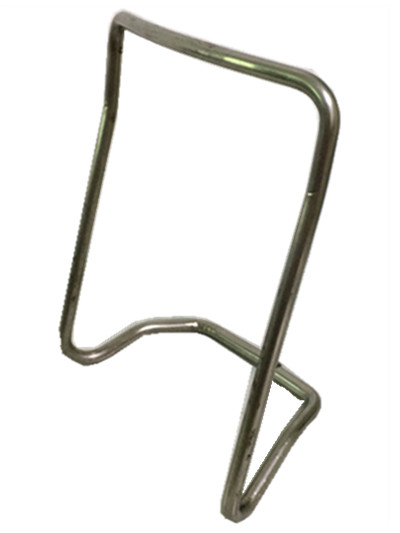

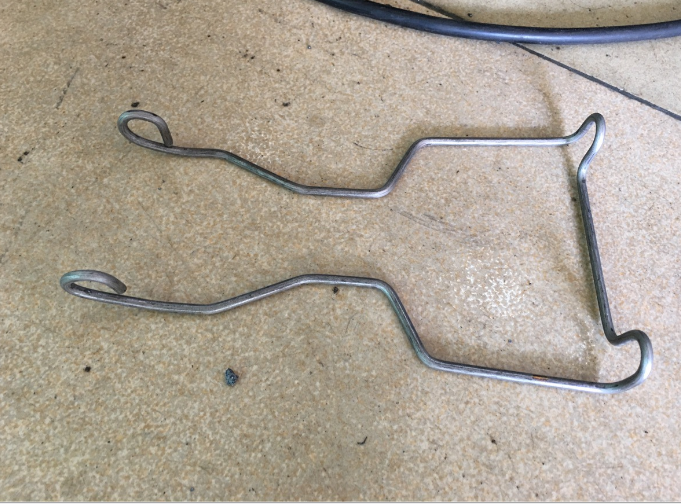

適用于：汽車連接桿、座椅骨架等零部件和工藝品、衛廚配件、超市貨架，家具座椅，園林工
等4-12mm線徑配件折彎成型。
Applicable to: Forming&bending wires with diameter between 4-12mm , such as automobile connecting rod, seat frame and other parts, as well as artware, sanitary and kitchenware, supermarket shelves, furniture seats, garden tools, etc.
一、楓盛轉頭線材成型機FS-DG203-08-5120技術參數
Technical parameters of Fengsheng 3D wire forming
machine with bending turret FS-DG203-08-5120
|
序號 |
類型type |
詳細參數Detailed parameters |
|
1 |
設備型號Equipment type |
FS-DG203-08-5120 |
|
2 |
加工線經規格Processing diameter |
Φ4-Φ12mm（抗拉強度tensile strength≤500N，including Q195/Q235） |
|
3 |
控制軸數Number of control axes |
5 |
|
4 |
轉臂電機功率Jib motor |
3.8KW |
|
5 |
送線電機功率Wire feeder motor |
15KW |
|
6 |
外模轉動電機功率Outer mold rotor |
2.0KW |
|
7 |
升降電機功率Lifter motor |
1.0KW |
|
8 |
切刀電機功率Cutter motor |
1.0KW |
|
9 |
最大送線速度Maximum wire feeding speed |
90m／min |
|
10 |
送線精度Wire feeding accuracy |
300mm±0.3 |
|
11 |
自動送線架最大承重Maximum load of automatic wire feeder |
1500Kg |
|
12 |
自動送線架圓盤直徑Diameter of automatic wire feeder’s circumcircle |
φ1900mm |
|
13 |
自動送線架電機功率Motor power of automatic wire feeder |
2.2KW |
|
14 |
主機電壓Voltage of the main machine |
AC380V（±20V） |
|
15 |
主機器重量Weight of the main machine |
2800kg |
|
16 |
主機器尺寸Measurement of the main machine |
3800mm X 2000mm X 1900mm（L×W×H） |
|
17 |
自動送線架重量Weight of automatic wire feeder |
800Kg |
|
18
|
自動送線架尺寸Measurement of automatic wire feeder |
2400mmX2400mmX1750mm |
二、使用條件及說明：Operation conditions and instructions
1、 電源電流及電壓1秒種以上波動應保證在±5%以內，設備可以正常運行。
2、 自動送料架與主機間隔距離2000mm以上。
3、 設備配備有USB接口，可實現數據讀取。
4、 電腦操作系統可以接入互連網，實現遠程控制和操作。生產效率及產量在人機界面有顯示，達到規定產量后設備可自動停機。
1. The power supply current and voltage fluctuation for more than one second shall be within ± 5%, under this circumstance, the equipment can operate normally.
2. The automatic cradle and the main machine shall be at least 2000mm apart.
3. The device is equipped with USB interface for data reading.
4. The computer operating system can be connected to the Internet for remote control and operation. The production efficiency and output are displayed on the human-machine interface, and the equipment can be automatically shut down after reaching the pre-set output.
三、其它other
1、 設備使用后齒輪箱及導軌滑塊要定期加潤滑油脂，周期60個工作日。
2、 附易損件及配置參照表如下。
1. After the equipment is used, add lubricating grease to the gear, guide rail and slide block every 60 working days.
2. Attached vulnerable parts and configurations are as follows.
A;整機配套周邊設備：Main machine and components：
|
序號 |
貨品內容 Product content |
數量QTY |
單位 UNIT |
備注 Notes |
|
1 |
FS-DG203-08-5120 五軸數控線材成型機Five-shaft CNC wire forming machine |
1 |
臺 set |
（包含）VAT-included |
|
2 |
自動送線架（1500kg）Automatic wire feeder (1500kg) |
1 |
臺 set |
（包含）VAT-included |
|
3 |
運輸及保險費（國內運輸）Freight and insurance (domestic transportation) |
1 |
套 set |
（不包含）VAT-excluded |
|
4 |
配套刀具/模具 Attached cutter / mold |
2 |
套 set |
（包含）VAT-included |
|
5 |
免費提供1人培訓 Free training for 1 personnel |
5 |
天 day |
（包含）VAT-included |
B;.整配件品牌及產地：Brand and origin of components:
|
配件名稱 Component name |
品牌/產地 Brand / origin |
|
配件名稱 Component name |
品牌產地 Brand / origin |
|
伺服電機 Servo motor |
SANYO |
|
變頻器 Frequency converter |
臺灣臺達Taiwan taida |
|
直線滑軌 Linear slide rail |
臺灣上銀 Taiwan Silver |
控制系統 Control system |
莞狼控制系統 |
|
|
鍵盤Keyboard |
羅技Logitech |
軸承Bearing |
日本NSK |
|
|
編碼器Encoder |
SANYO |
減速機Reducer |
德國紐卡特/臺灣品宏Newcastle, Germany / Pinhong, Taiwan |
|
|
電源Power |
臺灣明緯 Taiwan Mingwei |
機座材質 Frame material |
國標45#/A3 45#/A3 steel |
|
|
顯示屏Interface |
臺灣友達 Taiwan Youda |
|
|
C;.易損件隨機配送清單Random distribution list of vulnerable parts：
（請勿超負荷使用Please aware the service life of each parts, best not overload.）
|
序號 |
名 稱 Name |
樣圖 Pattern |
使用壽命Service life（year） |
備注Notes |
|
1 |
送線輪 Traction pulley |
|
≥1-2 |
模具規格根據客戶產品線徑大小定制The mold can be customized according to clients’ demand. |
|
2 |
小直折角柱 Small punch-pin |
|
≥1 |
|
|
3 |
折角盤3.5 Outer mold 3.5
|
|
≥2 |
小孔近距離 Small hole & short distance |
|
4 |
折角盤6.5 Outer mold 6.5
|
|
≥2 |
大孔遠距離 Big hole & long distance |
|
5 |
切刀 Cutter
|
|
≥1 |
模具規格根據客戶產品線徑大小定制The mold can be customized according to clients’ demand. |
|
6 |
短導線板 Short conductor plate |
|
≥2 |
|
|
7 |
固定式折角頭 Fixed punch-pin mate |
|
≥2 |
|
|
8 |
導向管Wire guide |
|
≥2 |
